AURUNA® 8400 Gold Nickel Electrolyte

AURUNA® 8400 Gold Nickel Electrolyte

High speed electrolyte for hard gold plating

AURUNA® 8400 is used for the deposition of hard gold coatings in special high-speed equipment. The electrolyte is weakly acidic, citrate-free and has a wide working range with simple bath maintenance.

The deposited coatings are high-brightness, low-porosity, solderable, hard and abrasion-resistant, and exhibit consistently low contact resistance. They are therefore ideally suited for electrical components such as contacts, plugs and connectors on printed circuit boards.

AURUNA® 8400 was developed for high-speed gold plating in selective plating lines and continuous reel-to-reel systems. It shows stable long-term behavior even with strong electrolyte movement (flow, spray) and high current densities. AURUNA® 8400 can also be used as a pregold electrolyte.

The optional use of AURUNA® Inhibitor 2 offers the possibility of reduced gold consumption of up to 15%. The inhibitor results in sharp edge delineations - thus reducing the run-out zone width. Of course, the coating properties remain unaffected. The inhibitor can be removed without residue after coating by activated carbon cleaning.

Electrolyte characteristics

Electrolyte type

weakly acidic

Metal content

12 (2 - 18) g/l Au

pH value

4.2 - 4.4

Operating temperature

45 - 60 °C

Current density range

plant-dependent

Plating speed

plant-dependent up to 12 μm/min

Anode material

Pt/Ti (PLATINODE® Pt/Ti) or MMO 177

Coating characteristics

Coating

Gold nickel

Purity

approx. 99.7 wt.% Au, approx. 0.3 wt.% Ni

Colour of deposit

yellow

Brightness

bright to highly bright

Hardness of deposit

approx. 130 - 190 HV

Max. coating thickness

10 μm

Density of the coating

approx. 17 g/cm³

Advantages

  • Very high plating speeds
  • Lower gold content possible
  • Exceptionally wide working range
  • Stable long-term behavior
  • Easy electrolyte maintenance
  • Excellent coating properties

Applications

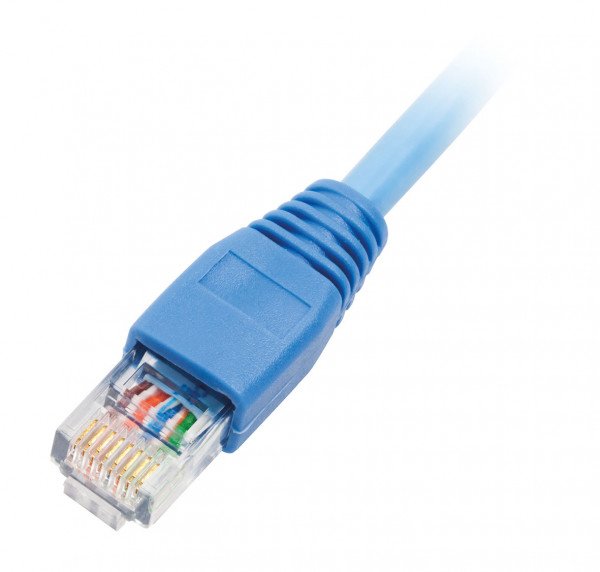

  • Connectors
  • Electrical contacts
  • Connector strips on printed circuit boards
