AURUNA® 526 Barrel Gold-Plating Electrolyte

AURUNA® 526 Barrel Gold-Plating Electrolyte

Excellent Layer Thickness Distribution

AURUNA® 526 is a weakly acidic gold-cobalt electrolyte with very good throwing power and layer thickness distribution, especially on hollow parts.

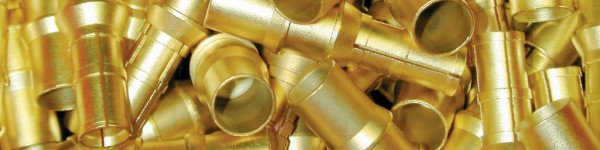

This makes the electrolyte perfect for use of bulk material in barrel and vibration coating systems. The interiors of cases or sockets often need to be gold-plated. The excellent throwing power therefore very positively influences the layer thickness distribution between the interior and exterior surfaces. This optimum distribution means gold can be saved.

The deposited layers have very good wear resistance, low contact resistance and impressive corrosion resistance.

Electrolyte characteristics

Electrolyte type

Weakly acid

Metal content

4 g/l (2 - 5 g/l)

pH value

4.4 (4.0 - 4.6)

Operating temperature

Room temperature (20 °C up to max. 30 °C)

Current density range

0.3 A/dm2 (0.3 - 1 A/dm²) barrel

Plating speed

approx. 0.08 μm/min

Coating characteristics

Coating

Gold-cobalt (approx. 0.2 wt.% Co)

Purity

Approx. 99.8 % Au

Colour of deposit

Deep yellow

Hardness

approx. 160 HV 0.01

Density of the coating

Approx. 17.5 g/cm³

Classification

ASTM B 488-01 Type 1, Code C (equivalent to Type 1, Grade C in accordance with MIL-G-45204 C)

Advantages

  • Save gold due to optimal coverage of hollow parts
  • Excellent throwing power
  • Long-term stability in permanent operation
  • Layers are classified in accordance with:
    ASTM B-488-01: Type 1, Code C

Applications

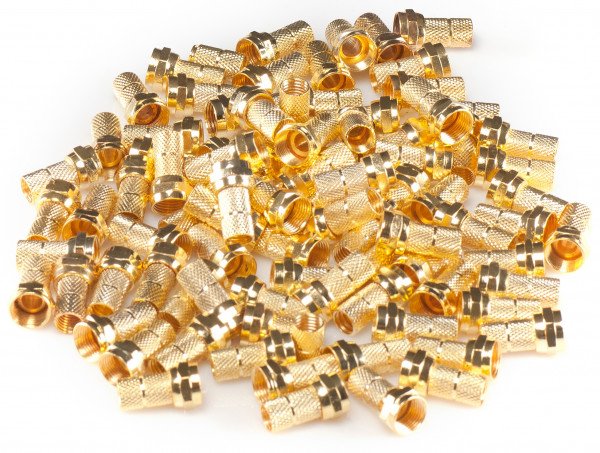

  • Bulk and barrel parts
  • Pin, spring and plug contacts
  • Contact sockets
